VolksWagen Door Panel Removal

Start by unclipping the cover on the door handle.

Remove two Philips screws on the handle.

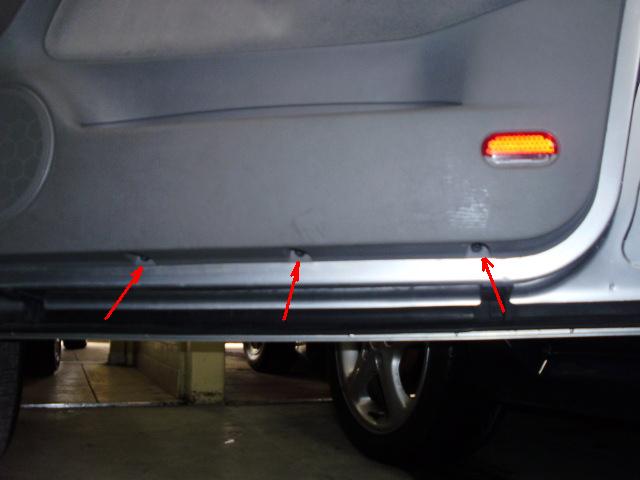

At the bottom of the door panel there are 3 more screws,Volkswagen thought is funny to use Torx 25 there.

There is another Phillips screw just below the small speaker.

Now, with a flat screwdriver unclip the panel all around.

After that, lift the door panel up and start to unplug the electrical connections.

Door handle has a small hook attached to it, pull the plastic clip in the direction shown by the arrow and then unhook it.

Unplug the courtesy light connector and remove the panel.

Installation is the reverse of removal.
