Volkswagen Door Control Module

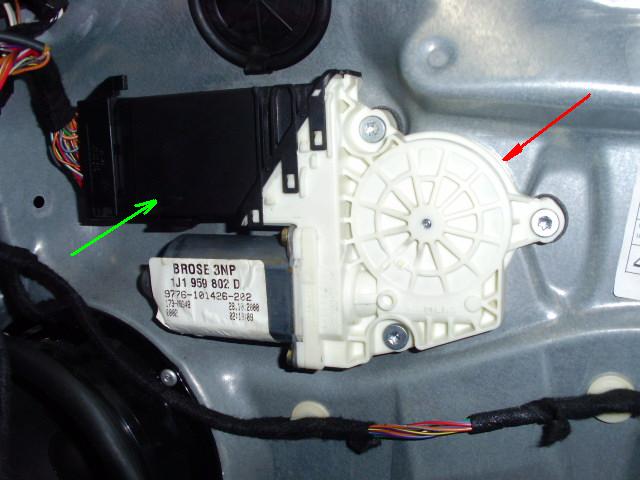

First remove the door panel. The module is attached to the power windows motor and I had no power on this door, nothing was working. First I checked all the wires and found that power and ground were present at the module but no power was coming out of it .

That made me think the module was the problem, luckily I was right. To replace the module you have to remove the power windows motor, it’s a straight forward procedure, remove three Torx screws and the unit will come out. Then unplug the electrical connector by pulling the slider at the bottom of it.

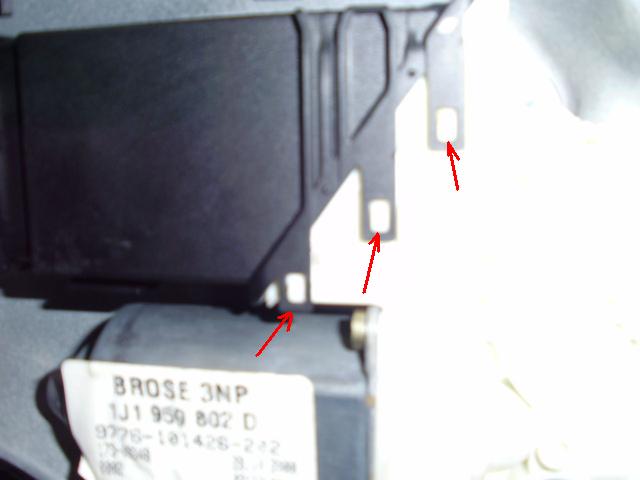

The module is attached to the motor with 6 plastic plastic clips, 3 on each side. Use a flat screwdriver to keep them opened and pull the module out.

Installation it’s easy, just push the module straight in, plug the connector and bolt the unit in place.
